Ultimate Power Electronics and Electrical Protection Course
Learn about power electronics, electrical protection, and the PLC simulator (LogixPro) for electrical engineering
Watch Promo Enroll in Course
⚡️ "Ultimate Power Electronics and Electrical Protection Course for Electrical Engineering" ⚡️
This magnificent 40-hour course will help you have a kick start in power electronics including rectifiers, AC choppers, DC choppers, and inverters. In addition to the basics of electrical protection such as overcurrent protection, differential protection, distance protection, circuit breakers, and fuses.
- The applications of power electronics and the definition of a power electronic circuit.
- Different types of switches such as diodes, thyristors, GTO, BJT, IGBT, Mosfet, etc.
- The different AC/DC converters (rectifiers) such as half-wave and full-wave rectifier single-phase circuits in uncontrolled, half, and fully controlled bridges
- AC chopper circuits or AC/AC converters in the case of R load, L load, RL parallel, RL series load, and capacitive loads. In addition to the integral cycle control of an AC chopper.
- DC choppers or DC/DC converters such as the step-down DC chopper with R and R-L-E load, and the step-up DC chopper with R, RL, and RE loads. Moreover, the buck, boost, and buck-boost regulator circuits.
- Inverter or DC/AC converters including single-phase half-bridge R-load, single-phase half-bridge RL-load, single-phase bridge inverter R-load, single-phase bridge inverter RL-load, and the three-phase inverters. Furthermore, the single, multiple, and sinusoidal pulse width modulations.
- Single-phase half-wave controlled and bridge-controlled rectifiers.
- Single-phase AC chopper with R and RL load
- DC-DC converters such as buck, boost, and buck-boost regulators.
- Single-phase half-bridge, bridge inverters, and three-phase inverters.
- The different components of the electrical protection system, zones of protection, the trip circuit of the electrical system, the primary and backup protection, and the fault clearing time.
- The different types of relays such as directional power relays, overcurrent relays, distance relays, plain impedance relays, directional impedance relays, modified impedance-type distance relays, reactance-type distance relays, Mho or admittance distance relays, and more.
- The principle of operation and selection of low-voltage circuit breakers
- The principle of operation of earth leakage circuit breaker or residual current CB
- The selection of medium voltage circuit breakers
- The types of low voltage and high voltage fuses
Course Curriculum
-
PreviewIntroduction to this Course Bundle (3:41)
-
StartIntroduction to Power Electronics (20:14)
-
StartCourse Files and PDF Slides
-
StartA Power Electronic Circuit (6:29)
-
StartPN Junction (15:14)
-
StartDiodes in Power Electronics (21:40)
-
StartTypes of Power Diodes (12:51)
-
StartThyristors in Power Electronics (22:37)
-
StartThyristor Mode of Operation (9:07)
-
StartNatural and Forced Commutation (16:11)
-
StartTypes of Thyristors (11:33)
-
StartBipolar Junction Transistor (BJT) (31:16)
-
StartGate Turn-Off Thyristor (GTO) (17:51)
-
StartMetal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) (33:13)
-
StartInsulated Gate Bipolar Transistor (IGBT) (16:08)
-
StartTypes of Switches (4:50)
-
StartComparison between Controlled Switches (5:00)
-
StartPower Switch Losses (4:58)
-
StartOverview on Rectifiers (1:37)
-
StartRectifier Definition (1:08)
-
StartHalf Wave Uncontrolled Rectifier With R Load (21:03)
-
StartExample on Half Wave Uncontrolled Rectifier with R Load Part 1 (5:58)
-
StartExample on Half Wave Uncontrolled Rectifier with R Load Part 2 (6:58)
-
StartHalf Wave Uncontrolled Rectifier with RL Load (9:35)
-
StartDerivation of Current in R-L Load (7:57)
-
StartFreewheeling Diode (Commutation Diode) (3:00)
-
StartHalf-wave R-L Load With FWD (9:11)
-
StartDifference between Continuous and Discontinuous Mode in RL Load (6:52)
-
StartHalf Wave RL Load Continuous Mode with FWD (5:34)
-
StartExample on Half Wave Uncontrolled Rectifier with FWD (6:52)
-
StartBridge Full Wave Uncontrolled Rectifier Part 1 (7:18)
-
StartBridge Full Wave Uncontrolled Rectifier Part 2 (5:21)
-
StartQuick Revision on Bridge Full-wave Uncontrolled Rectifier (5:50)
-
StartFiring Angle (1:52)
-
StartHalf-Wave Controlled Rectifier R Load (4:42)
-
StartHalf-Wave Controlled Rectifier R-L Load (4:28)
-
StartHalf Wave Controlled R-L Load with FWD (5:33)
-
StartExample 1 (7:17)
-
StartExample 2 (8:24)
-
StartExample 3 (12:36)
-
StartExample 4 (8:46)
-
StartExample 5 (4:37)
-
StartFully Controlled Bridge Rectifier Part 1 (6:01)
-
StartFully Controlled Bridge Rectifier Part 2 (5:47)
-
StartQuick Revision on Bridge Full Wave Controlled Rectifier (1:56)
-
StartExample 6 (7:53)
-
StartHalf Controlled Bridge Rectifier (7:50)
-
StartHalf Controlled Bridge Rectifier with FWD
-
StartExample 7 (7:16)
-
StartExample 8 (10:29)
-
StartPerformance Parameters (4:12)
-
StartPower Factor (4:05)
-
StartIntroduction to AC Choppers (2:20)
-
StartDefinition of AC Chopper (5:14)
-
StartSwitching Techniques in AC Choppers (5:56)
-
StartApplications on AC Choppers (3:10)
-
StartTypes of AC Choppers (2:26)
-
StartAC Chopper with R Load (14:13)
-
StartExample 1 on AC Chopper with R Load (5:56)
-
StartExample 2 on AC Chopper with R Load (4:00)
-
StartAC Chopper with L Load Part 1 (12:47)
-
StartAC Chopper with L Load Part 2 (6:12)
-
StartExample on AC Chopper with L Load (8:01)
-
StartAC Chopper with RL Series Load (19:59)
-
StartExample on AC Chopper with RL Series Load (7:28)
-
StartAC Chopper with RL Parallel Load (24:33)
-
StartExample on AC Chopper with RL Parallel Load (5:42)
-
StartAC Chopper with Pure Capacitive Load (14:16)
-
StartExample on AC Chopper with Pure Capacitive Load (4:22)
-
StartAC Chopper Loaded by Heavy Rectifier (5:41)
-
StartAC Chopper Loaded by AC Motor with Sinusoidal Back Emf (12:28)
-
StartExample on AC Chopper Loaded by AC Motor with Sinusoidal Back Emf (8:17)
-
StartIntegral Cycle Control (11:03)
-
StartExample on Integral Cycle Control (4:17)
Get started now!
Important Note ⚠️⚠️⚠️⚠️
If you have any trouble in buying the electrical bundle,
You can contact us at
and we will help you :)
⚡️ You will also get the slides for the Ultimate Power Electronics and Protection bundle for those who are interested in them or having them as a revision for themselves ⚡️
You will find in these files:
✔️ More than 100 Pages of Rectifiers and Basics of Power Electronics Slides
✔️ 45 Pages of AC Choppers Slides
✔️ 78 Pages of DC Choppers Slides
✔️ 90 Pages of Inverters Slides
✔️ 153 Pages of Electrical Protection Slides
Get started now!

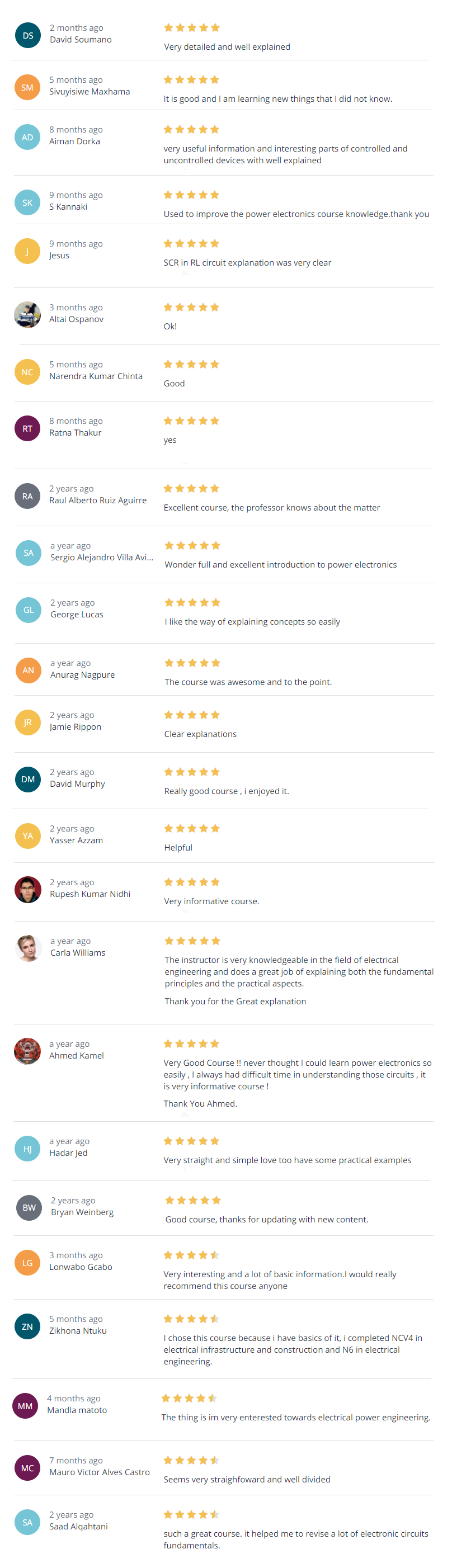

Students' Reviews
Get started now!
You will also be rewarded with a certificate of completion after completing the course bundle
